ZPLASTK™ Insulating Concrete Forms (ICF)
ZPLASTK™ Insulated Concrete Formwork （ICF） is an innovative construction system that combines structural strength with energy efficiency.
Inquire Now
Share:
Overview

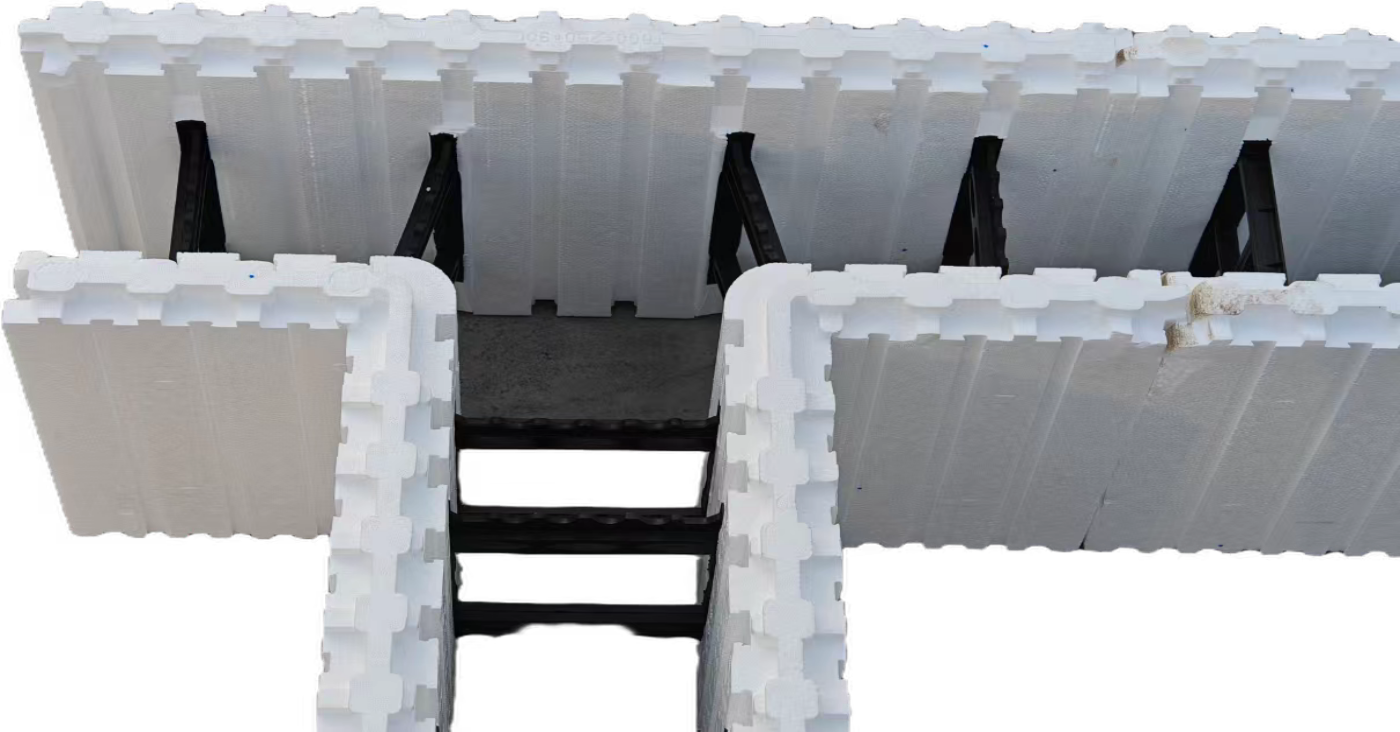

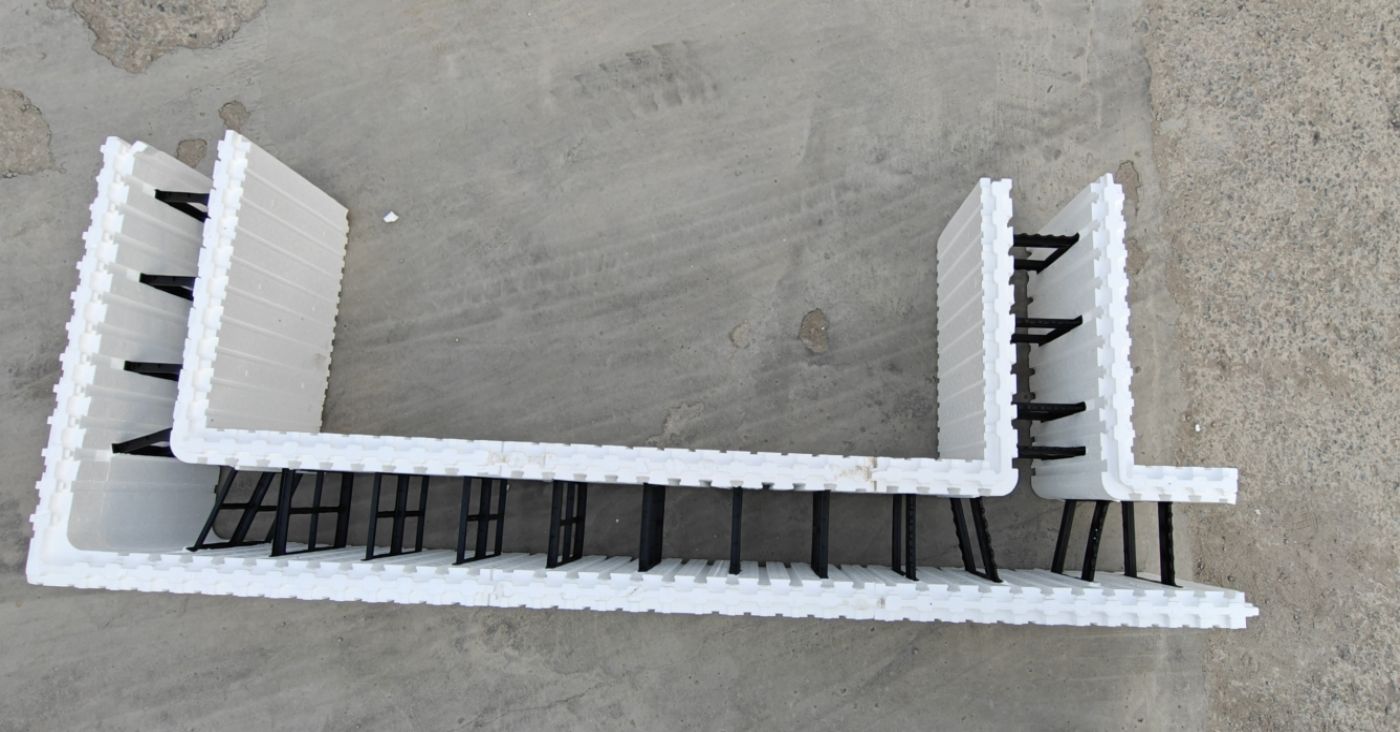

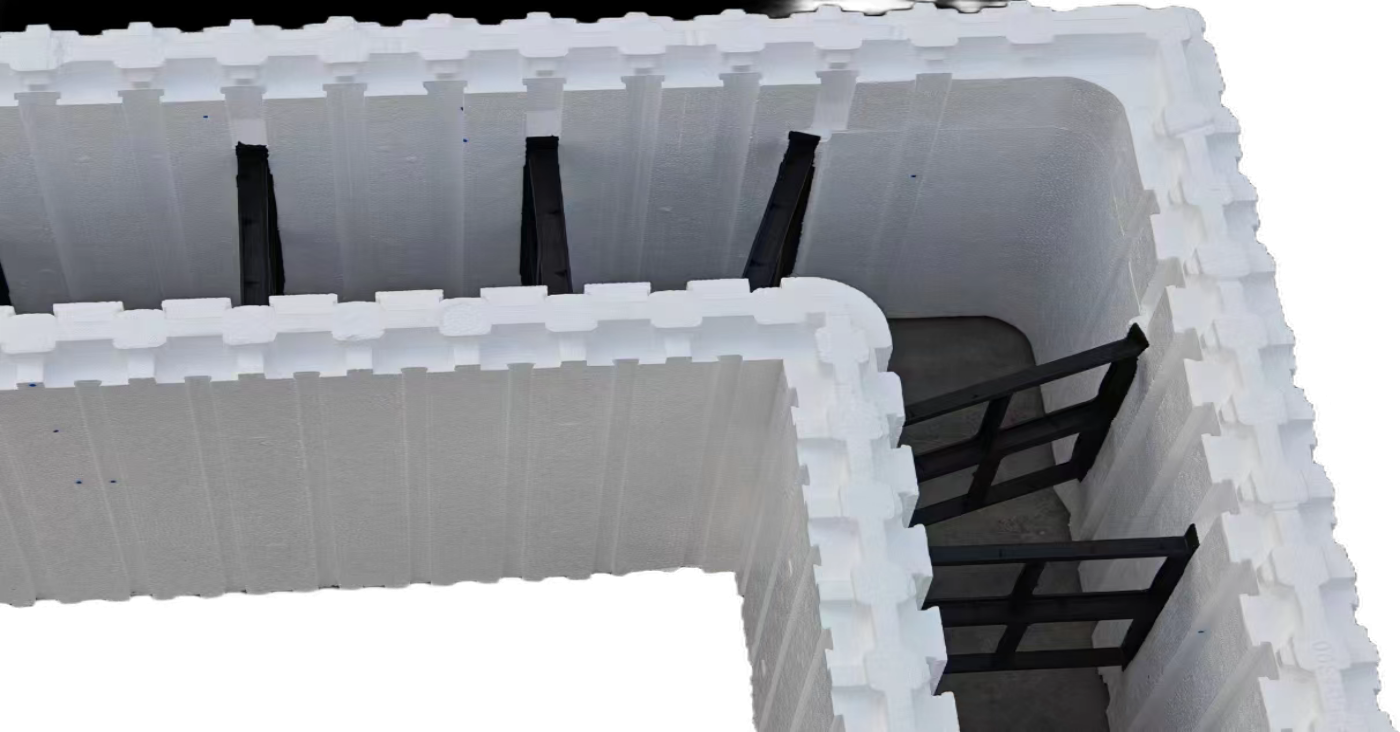

ZPLASTK™ Insulated concrete formwork (ICF) is an innovative construction system that combines structural strength with energy efficiency. It uses interlocking EPS foam blocks to form reinforced concrete walls. The blocks interlock firmly for concrete pouring. They're available in different sizes and shapes, allowing flexible on - site cutting to fit project needs.
Features
| 1. | Thermal Performance | EPS foam minimizes thermal bridging, reducing heat loss/gain by up to 60% compared to traditional methods. |
| 2. | Air Tightness | Seamless interlocking blocks reduce air leakage, enhancing HVAC efficiency and indoor comfort. |
| 3. | Speed of Construction | No need to dismantle forms post-pour, saving labor and time. |
| 4. | Durability & Safety | Concrete core resists fire, moisture, and pests. High mass improves sound insulation. |
| 5. | Sustainability | 100 % recyclable. Reduced material waste and long-term energy savings lower carbon footprint. |
Applications
Residential: Ideal for energy-efficient homes, basements, and storm-resistant builds.
Commercial: Used for schools, hospitals, and offices requiring strict thermal/acoustic control.
Retrofits: Can be integrated into renovations to upgrade insulation and structural integrity.
Considerations
Cost: Higher upfront material costs compared to wood framing, but offset by long-term energy savings.
Design Flexibility: Compatible with most architectural styles but requires planning for electrical/plumbing integration.
ICF is a forward-thinking solution for sustainable, resilient, and energy-conscious construction.
Specifications
| 1. | Material | Polystyrene |
| 2. | Length | Wide range can be customised |
| 3. | Corner | 750 * 250（280）* 300 mm 450 * 250（280）* 300 mm |
| 4. | Panel | 900 * 250（280）* 300 mm 600 * 250（280）* 300 mm 300 * 250（280）* 300 mm |
| 5. | T - Corner | 1200 * 200 * 250（280）* 300 mm 600 * 500 * 250（280）* 300 mm |
