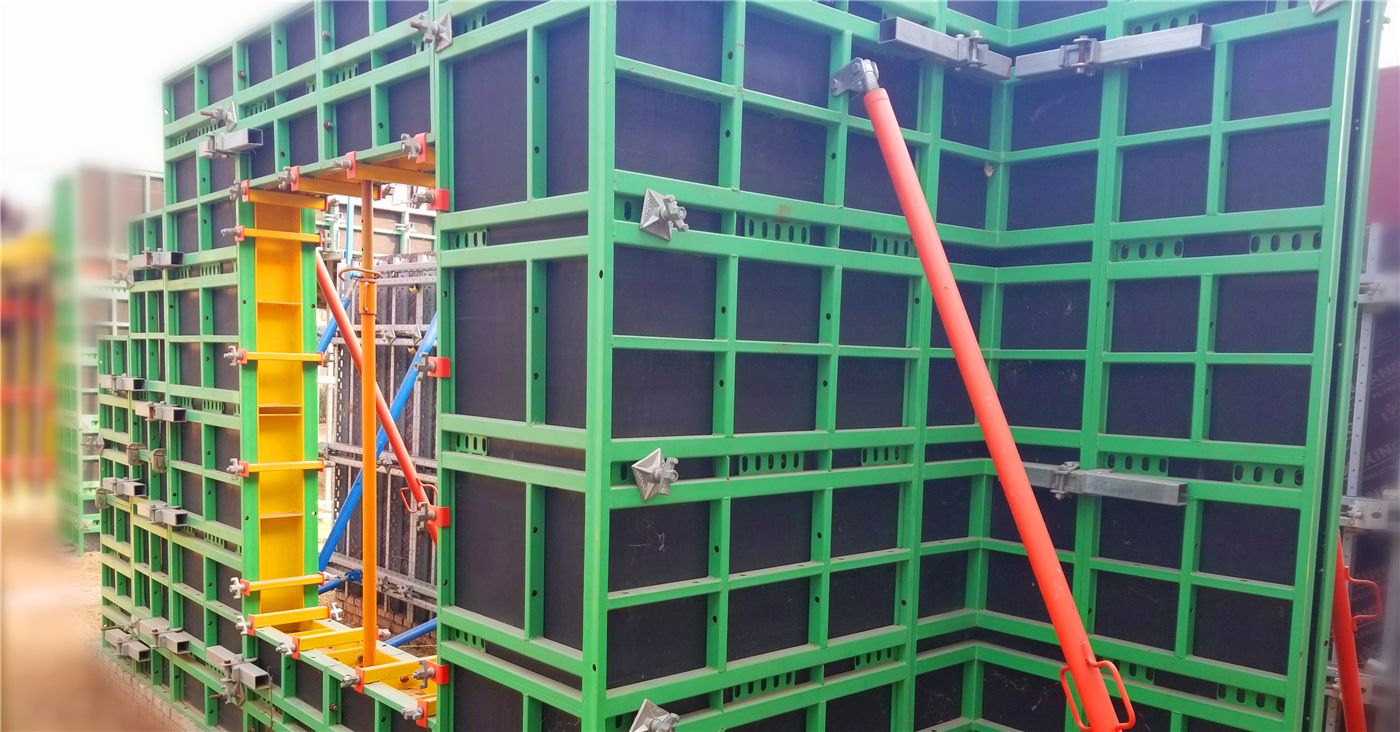

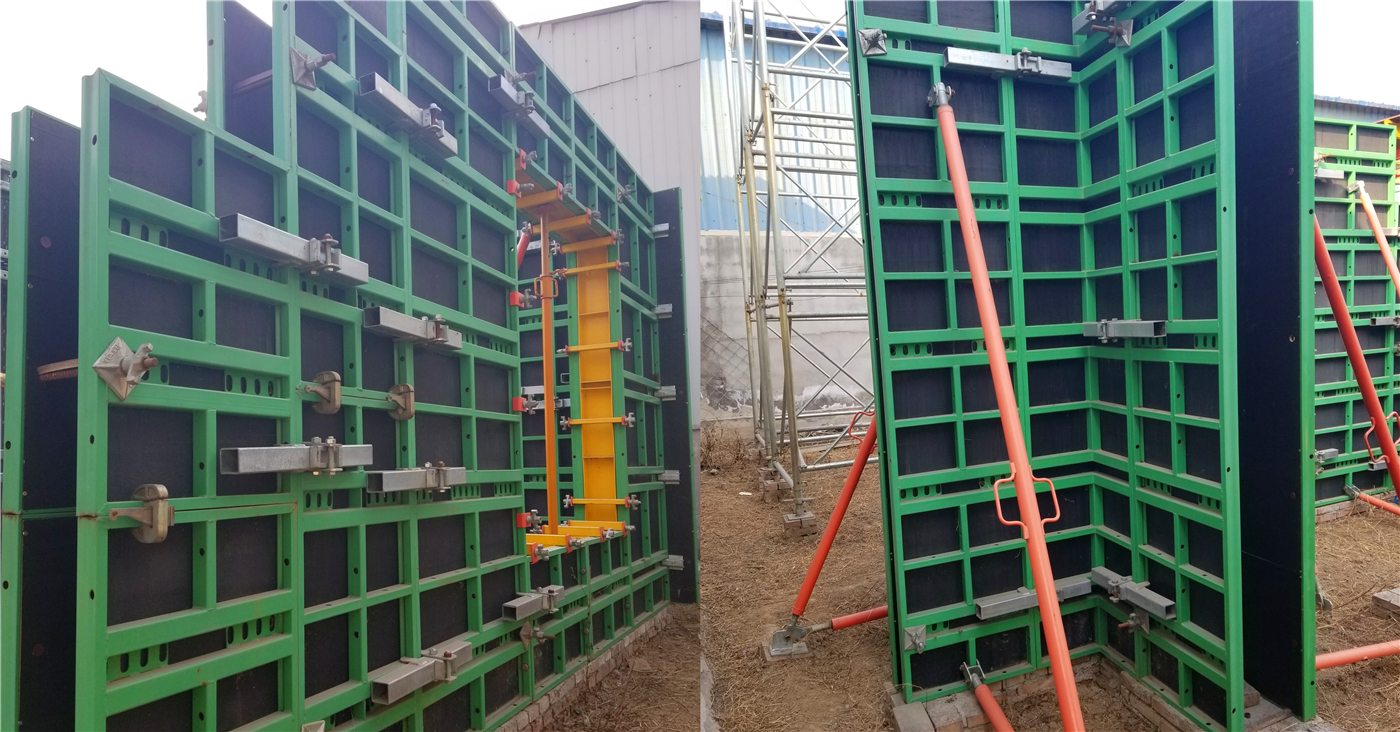

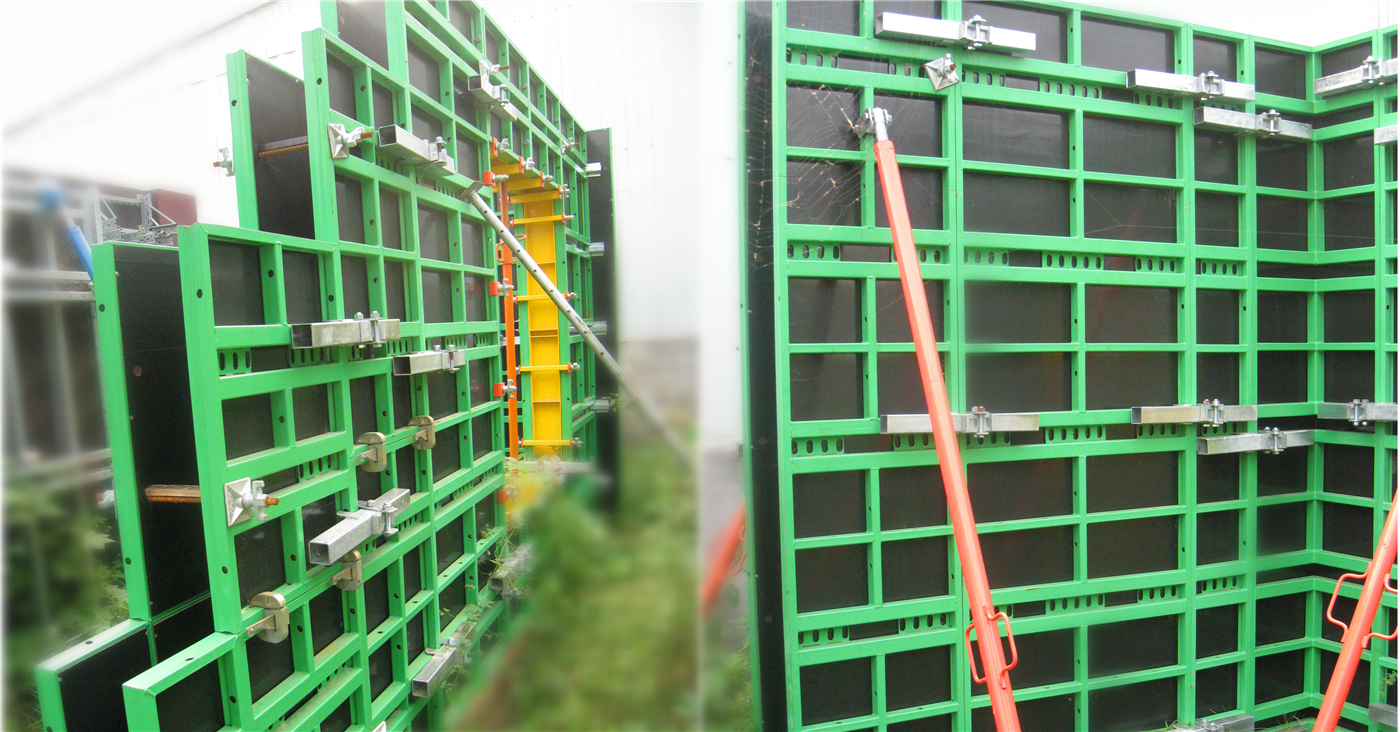

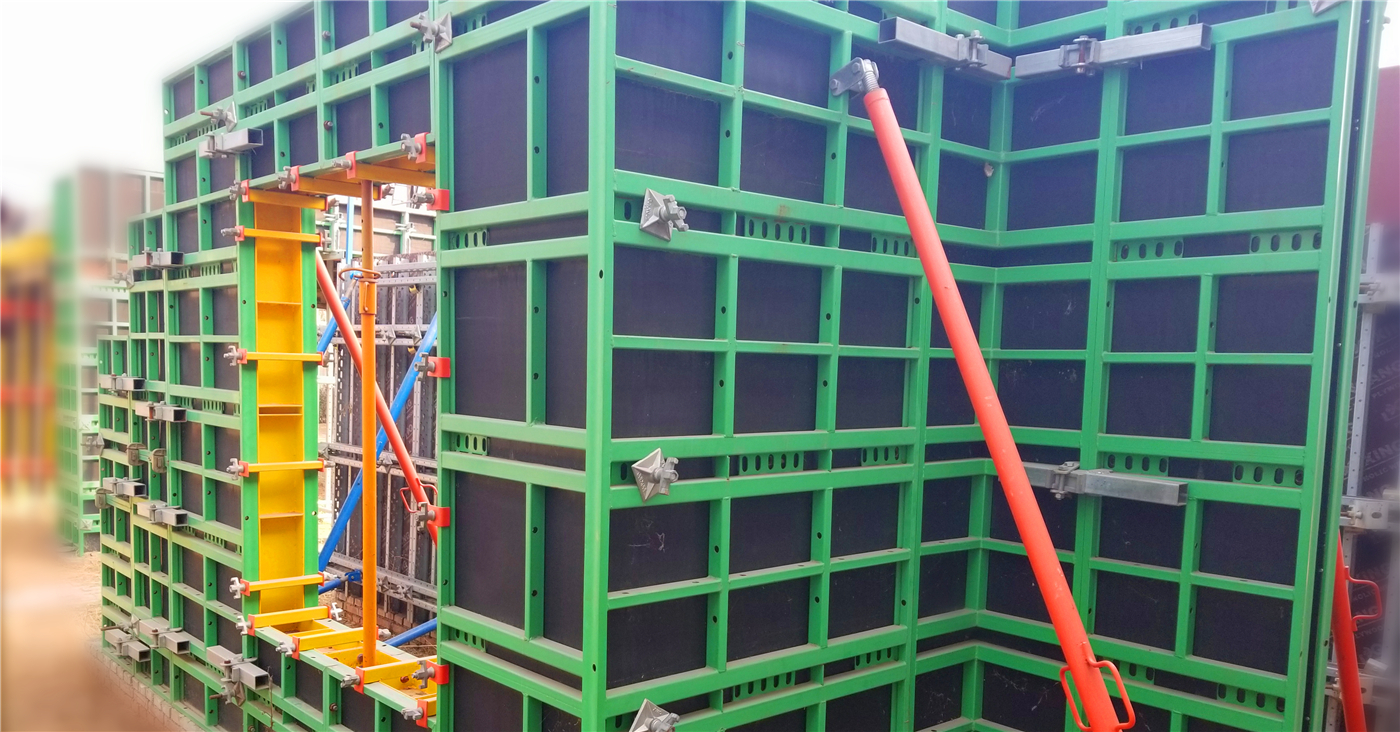

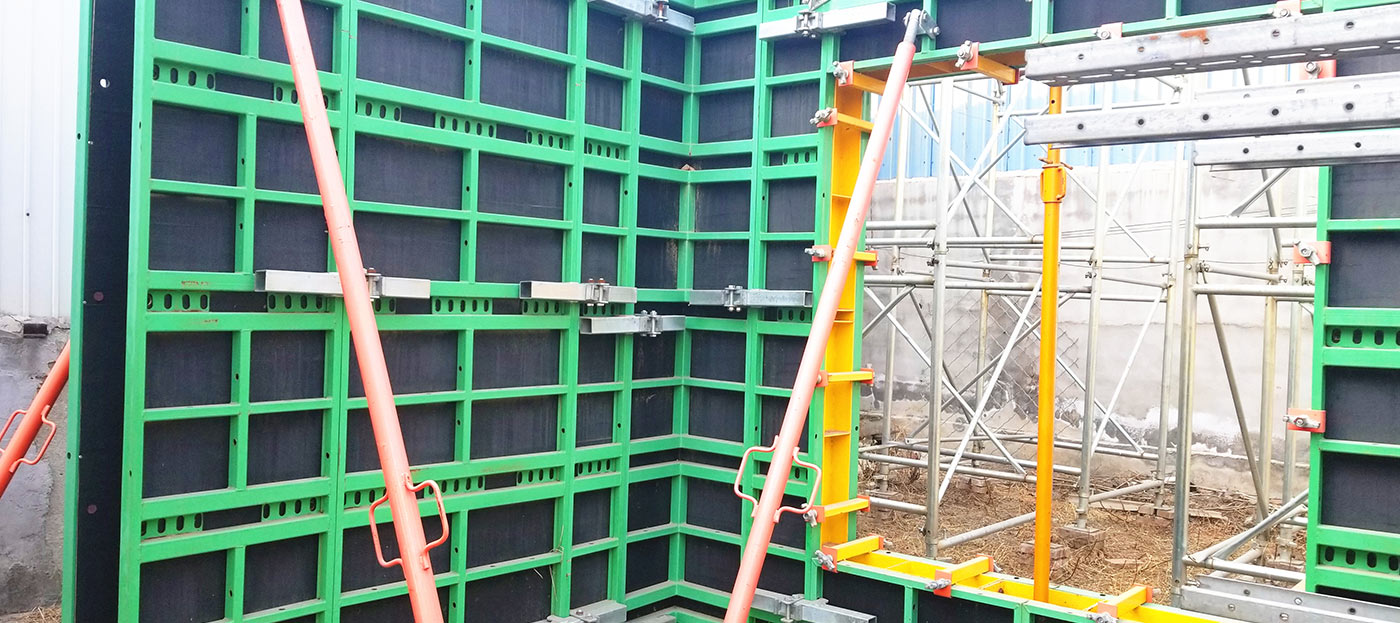

ZOLO ZFORM™65 light duty steel framed formwork system is a hollow-bellied steel-ply wall formwork system, the formwork panel frame mady by Q345 high strength structure steel, which has the characteristics of high strength, high rigidity, light weight.
ZOLO ZFORM™65 light duty steel framed formwork system is a hollow-bellied steel-ply wall formwork system, the formwork panel frame mady by Q345 high strength structure steel, which has the characteristics of high strength, high rigidity, light weight. The face panel is made by 12mm thickness high quality ZPly™ Grade A plywood, which has the characteristics of high modulus of elasticity, small amount of elasticity and good bearing capacity. The connection between the steel frame and the panel adopts the way of screws from the front, and the overall concrete finishing can reach the fair-faced concrete standard.
1. High level of standardization, flexible assembly, also can be used to meet the needs of non-standard size by adopt the method of clamping wooden plank..
2. High strength of hollow-bellied steel, reasonable force, steel-framed plywood wall formwork can withstand lateral pressure of 60KN/square meter.
3. Adopting standard clamp, the formwork panel can be assembled easily and quickly, and clamped tightly.
4. The ZOLO Z-FORM™65 formwork panel can choose domestic plywood or plastic panel with better stress, and also there are various choices.
5. The ZOLO Z-FORM™65 formwork system has complete varieties of fitting accessories, according to the needs of any project.
| Material | Q345 High Strengthen Structure Steel+Powder Coatiing or Galvanized |
| Thickness of front panel | 12 mm Z-PLY™ Grade A or Z-PLASTK™ PP Shuttering Board |
| Maximum Lateral Pressure for Column | 60 KN/㎡ |
| Maximum Lateral Pressure for Wall | 50 KN/㎡ |
| Height | 300-3300 mm (can be customized) |
| Width | 300-2400 mm (can be customized) |
