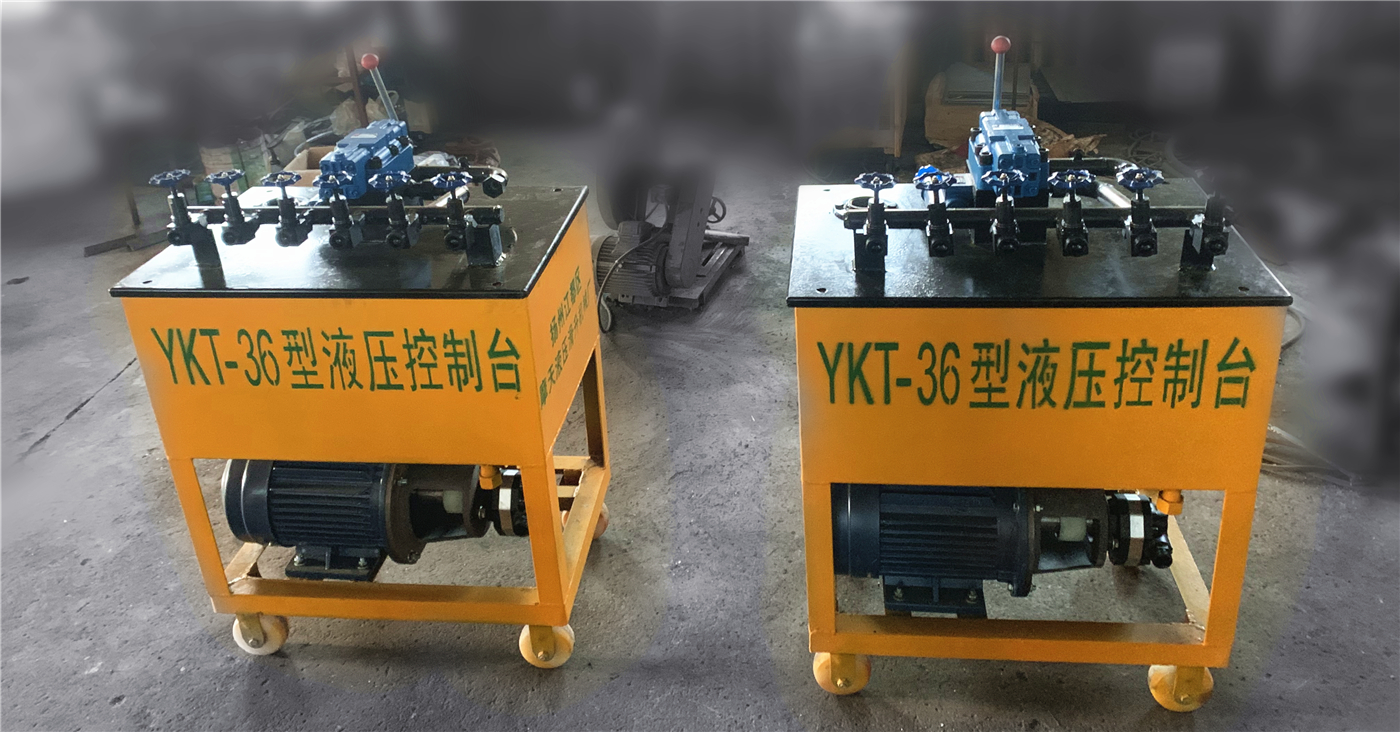

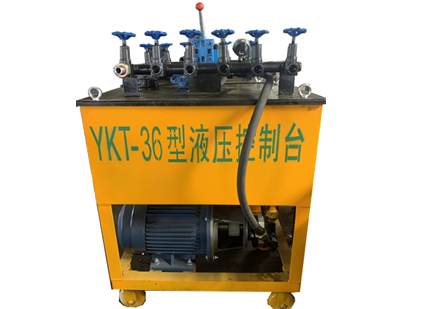

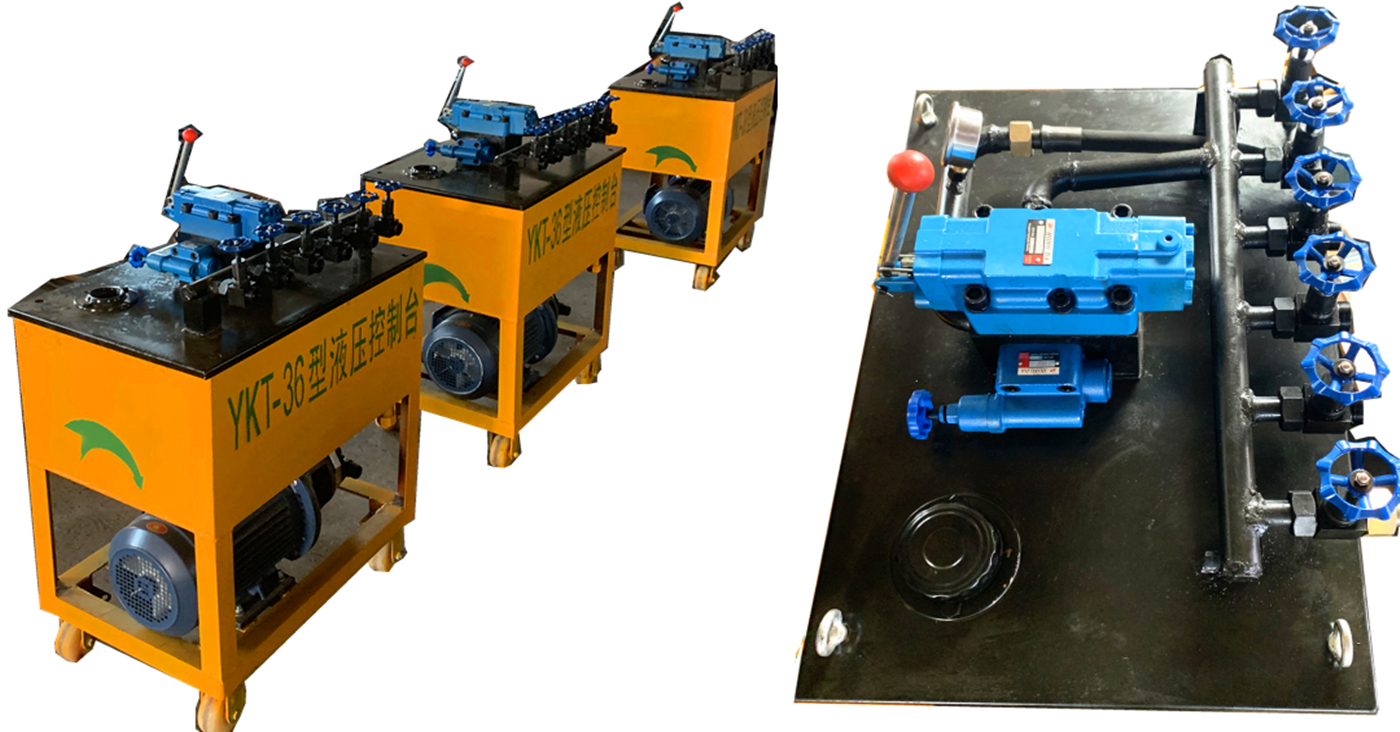

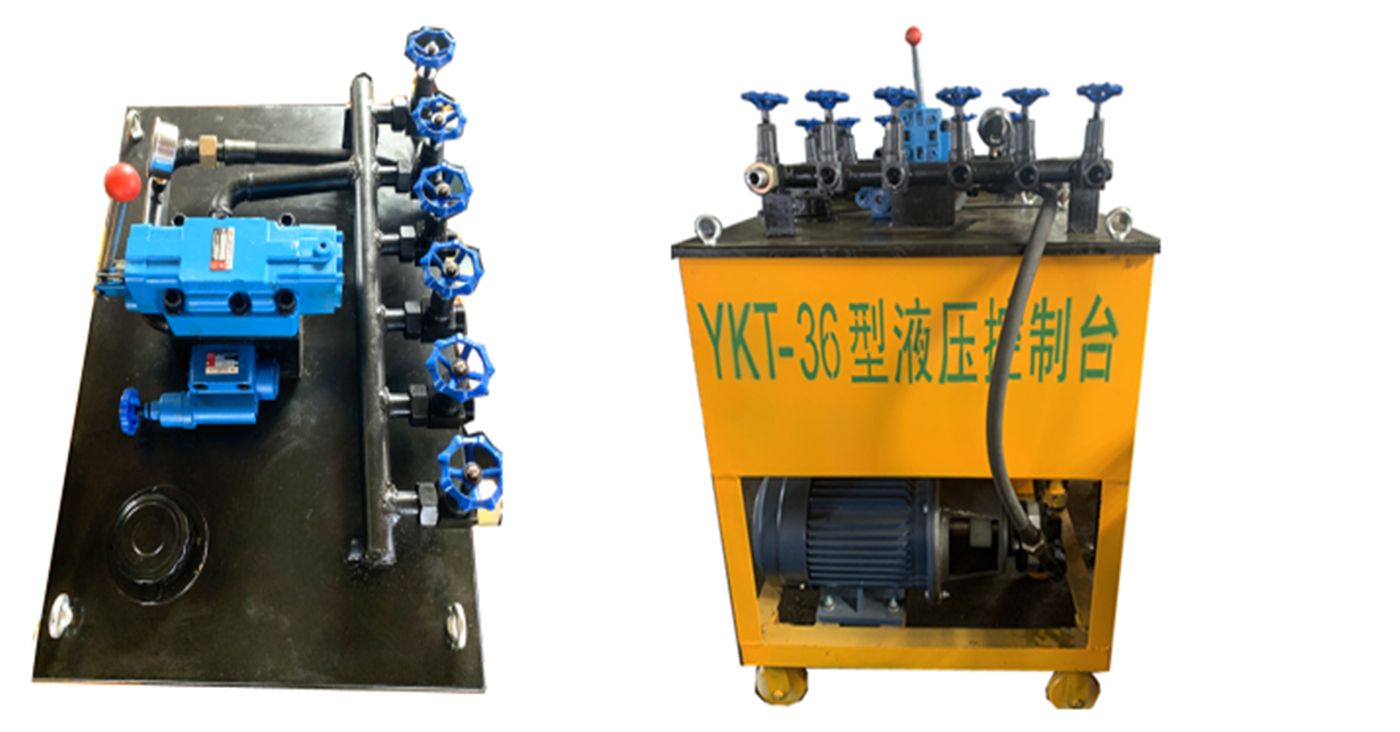

Zolo Slipform Hydraulic Sation

Zolo SlipForm hydraulic station (power unit) ensures smooth and consistent operation, minimizing delays and maintaining a steady construction pace.

Inquire Now

Overview

Zolo Slipform Hydraulic Pump Station is an advanced slipform equipment specifically designed for vertical slipform construction, aimed at enhancing efficiency and precision. Utilizing state-of-the-art hydraulic technology, this pump station supports continuous slipform construction, making it ideal for constructing high-rise buildings, silos, and tower structures.

Key Features
1.	Advanced Hydraulic System	Zolo hydraulic system ensures smooth and consistent operation, minimizing delays and maintaining a steady construction
2.	Precision Control	The system allows for precise adjustments, ensuring accurate placement of concrete and maintaining the structural integrity of the project.
3.	Enhanced Safety	Equipped with multiple safety features, including emergency stop functions and load monitoring systems, it ensures the safety of the workforce on-site
4.	Versatile Applications	Suitable for a wide range of vertical construction projects, including bridges, dams, chimneys, and cooling towers

Benefits
1.	Increased Efficiency	Streamlines the slipform construction process by allowing continuous concrete pouring, reducing project timelines.
2.	Cost-Effective	Minimizes labor costs and reduces the need for extensive scaffolding and formwork.
3.	High-Quality Finish	Produces a smooth and uniform surface, enhancing the aesthetic and structural quality of the final product

Specifications

ZOLO ZYKT SERIES HYDRAULIC PUMP STATION
MODEL	ZYKT-16	ZYKT-36	ZYKT-56	ZYKT-72	ZYKT-80	ZYKT-100
MODEL
RATED WORKING PRESSURE (Mpa)	8	8	8	8	8	8
FLOW (L/Min.)	16	36	56	72	80	100
CONTROLLABLE JACK QTY. (Units)	30	80	150	250	280	350
OVERALL DIMENSION (mm)	800X500X1050	850X700X1090	950X750X1100	1100X1000X1200	1100X1050X1200	1100X1100X1200
WEIGHT (Kgs)	125	280	400	520	550	650
