ZOLO ZDeck™100 Aluminium Panelized Slab Formwork is an innovative and efficient system designed for fast and safe construction of concrete slabs. Utilizing lightweight aluminium panels and drophead technology, ZDeck™100 significantly reduces labor time and costs, making it ideal for both residential and commercial projects.
ZDeck™ Aluminium Panelized Slab Formwork is an innovative and efficient system designed for fast and safe construction of concrete slabs. Utilizing lightweight aluminium panels and drophead technology, ZDeck™ significantly reduces labor time and costs, making it ideal for both residential and commercial projects.
| I | Lightweight Aluminium Panels | The system's lightweight panels ensure easy handling and quick assembly, enhancing on-site productivity. |
| II | Early-Striking System | Enables early striking, allowing for the reuse of formwork components within a short cycle time, accelerating the construction process. |
| III | Versatile Design | Adaptable to various slab geometries and thicknesses, providing flexibility for different project requirements. |
| IV | High Load-Bearing Capacity | Ensures stability and safety during construction, supporting high loads with minimal deflection. |
| V | Durable Components | Made from high-quality materials that withstand the rigors of repeated use, ensuring long-term reliability. |
| VI | Time and Cost Efficiency | Rapid assembly and early striking capabilities reduce labor costs and project timelines. |
| VII | Safety | Designed for safe handling and operation, minimizing risks on the construction site. |
| VIII | Quality Finish | Delivers smooth and precise concrete surfaces, enhancing the overall quality of the slab. |
| Main Specifications | |
| Drophead | Prophead |
| Panel in the following sizes:150 x 75, 150 x 50, 150 x 37.5, 75 x 75, 75 x 50, 75 x 37.5 (cm) | Main Beam in the following lengths:225, 150, 375 (cm) |
| Cover Strip in the following lengths:150, 75, 50, 37.5(cm) | Slab thickness max. 95 cm |

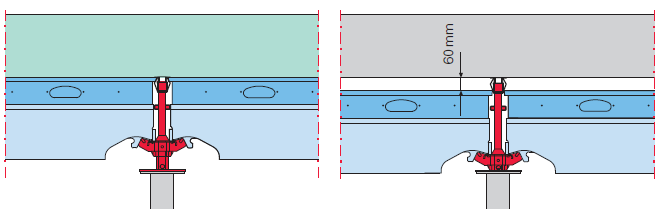

Shuttered Position DropHead Lowered Position

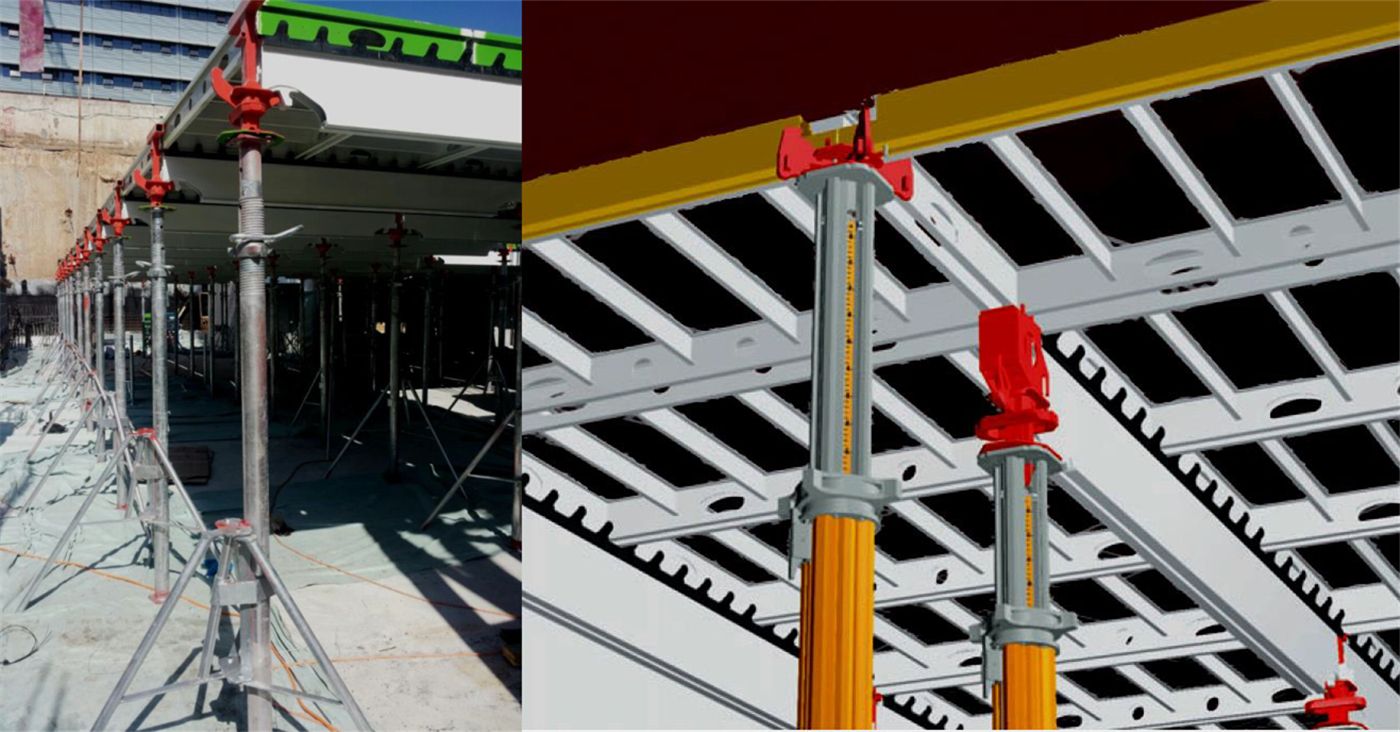

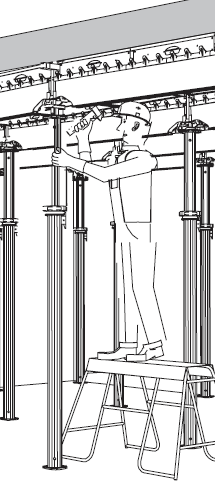

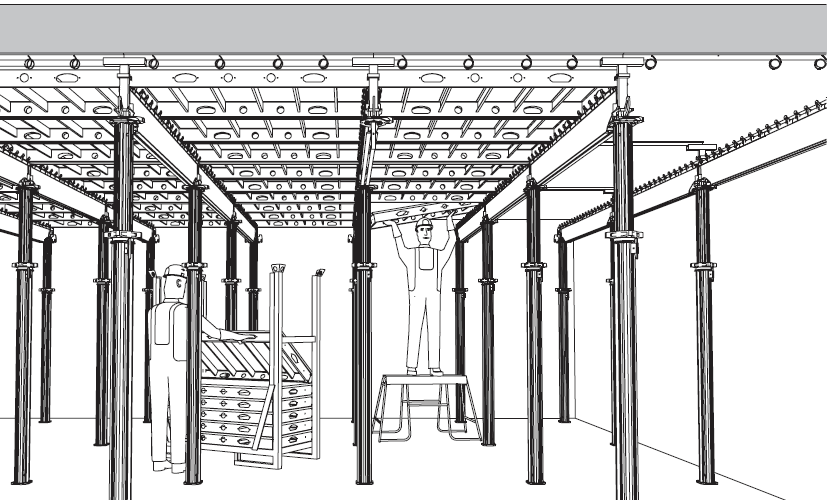

Striking with drophead. The drophead is released with a hammer blow causing all of the formwork to lower by 6 cm. Panels and main beams can then be removed. The drophead props together with cover strips remain in position.

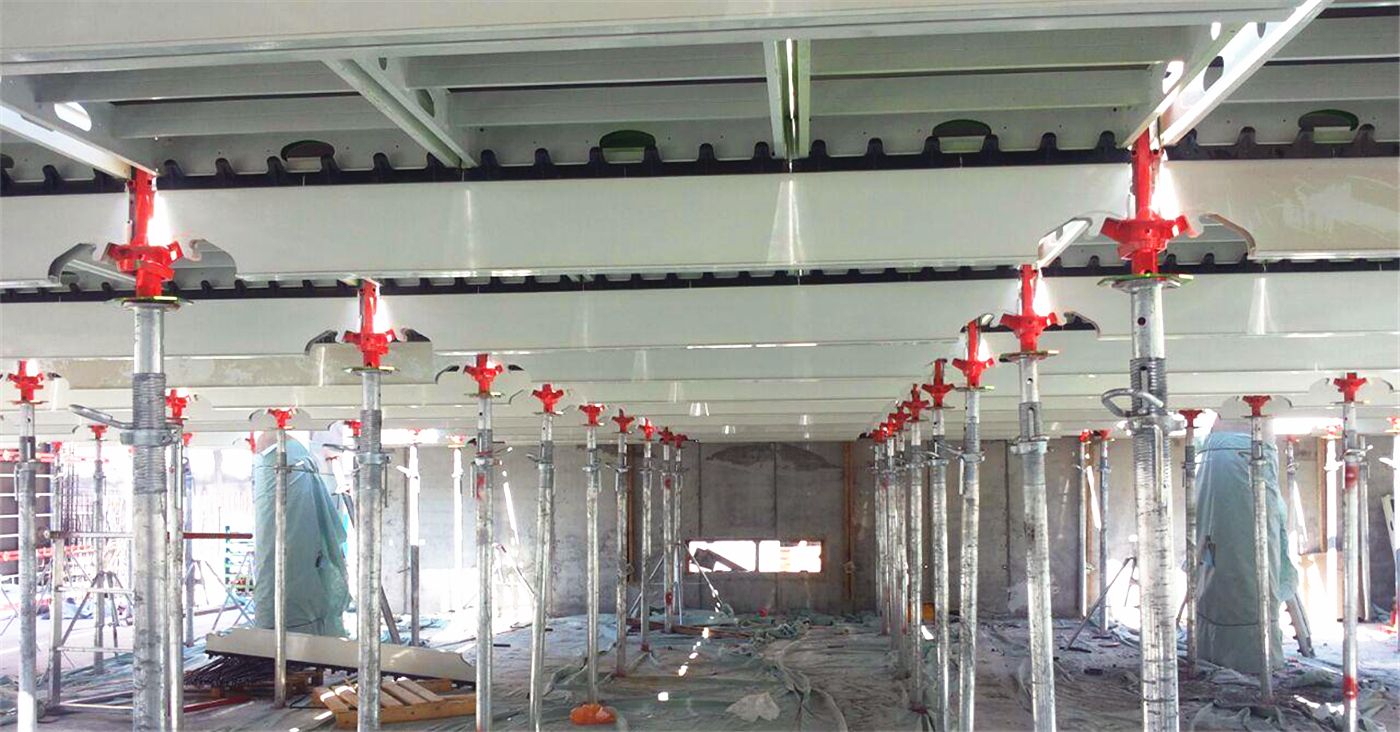

The drophead principle allows striking after only 1 day, depending on slab depth and concrete strength. Striking is easier because the panels can be released from the concrete more easily after a short time.

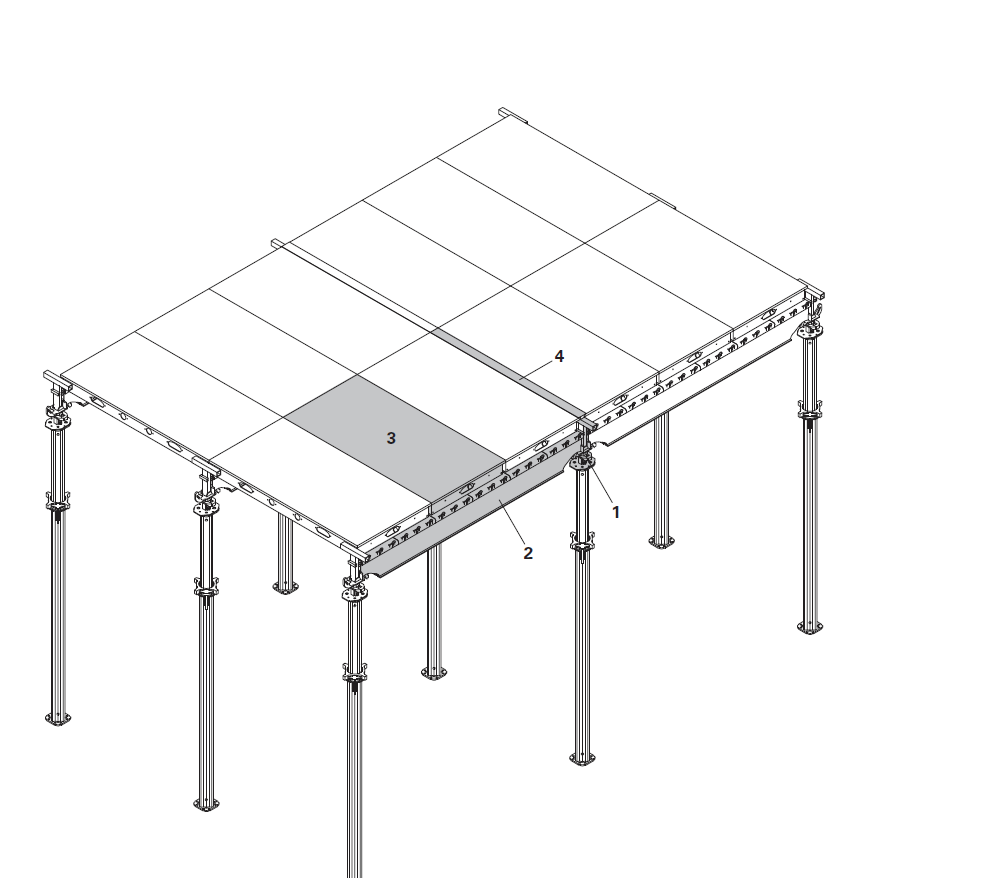

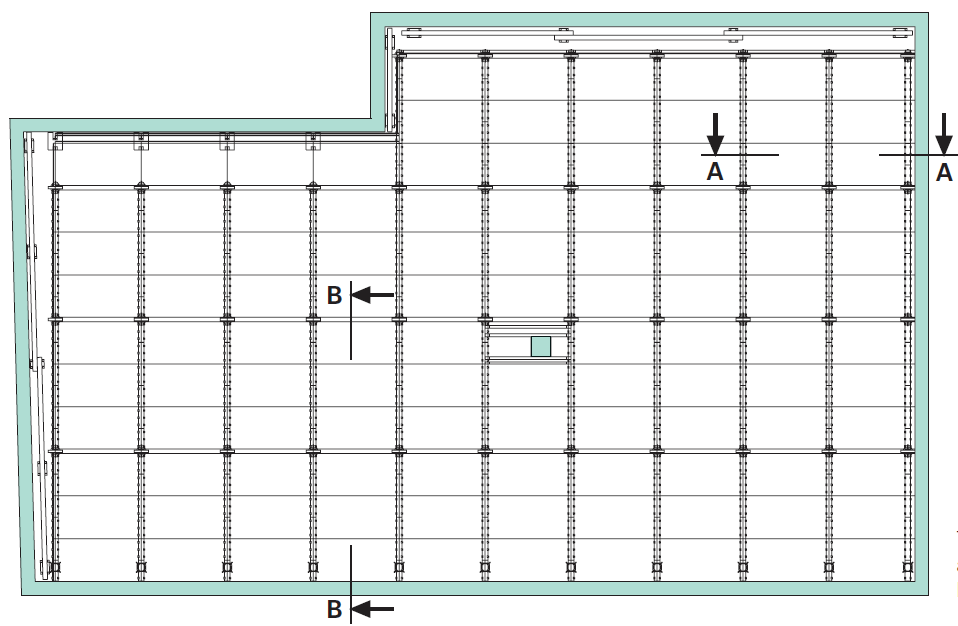

Typical application with wall return, angled wall junction and column to be formed.

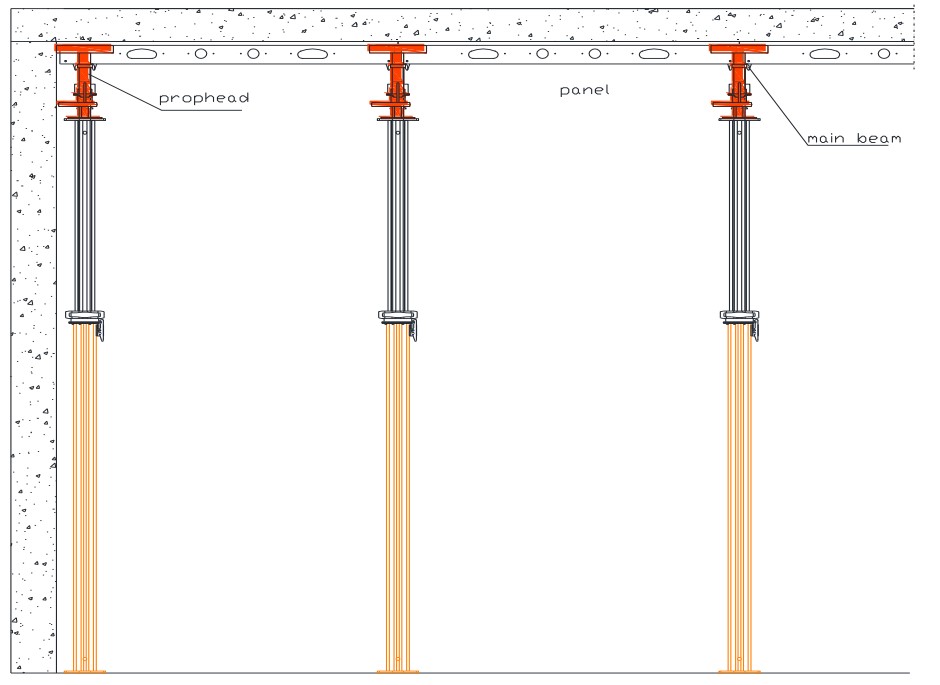

Cross-section A-A：The design principle with the panels lying ontop of the main beam makes the wall junctionwith the main beam set back possible.
