ZTie™ Thread Bar

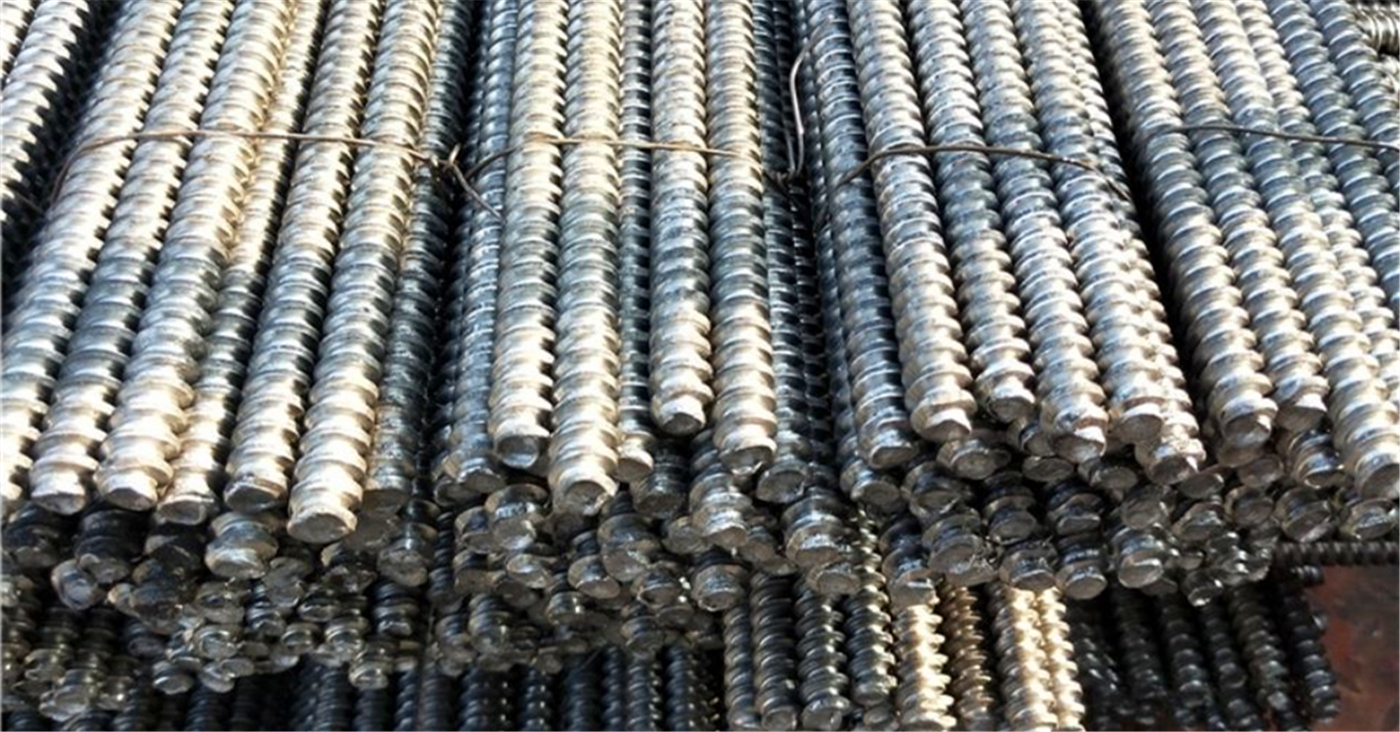

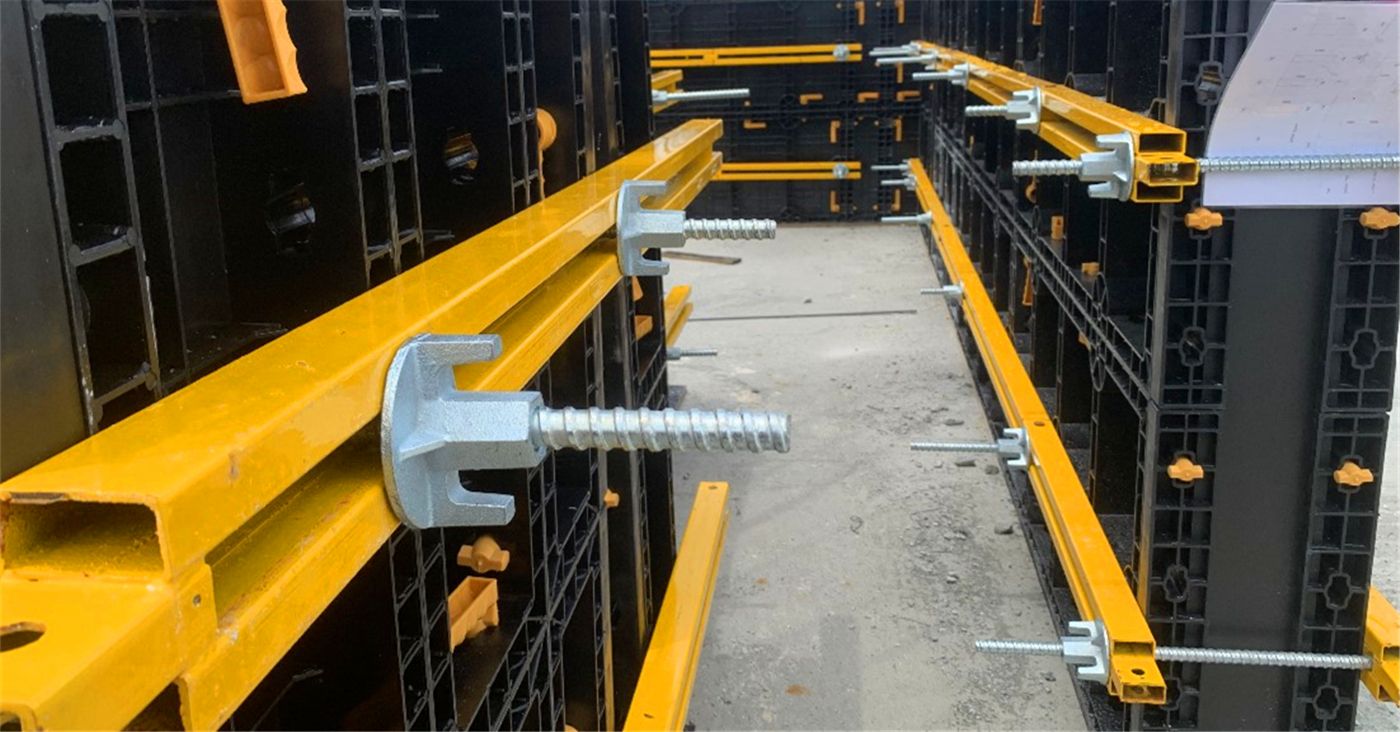

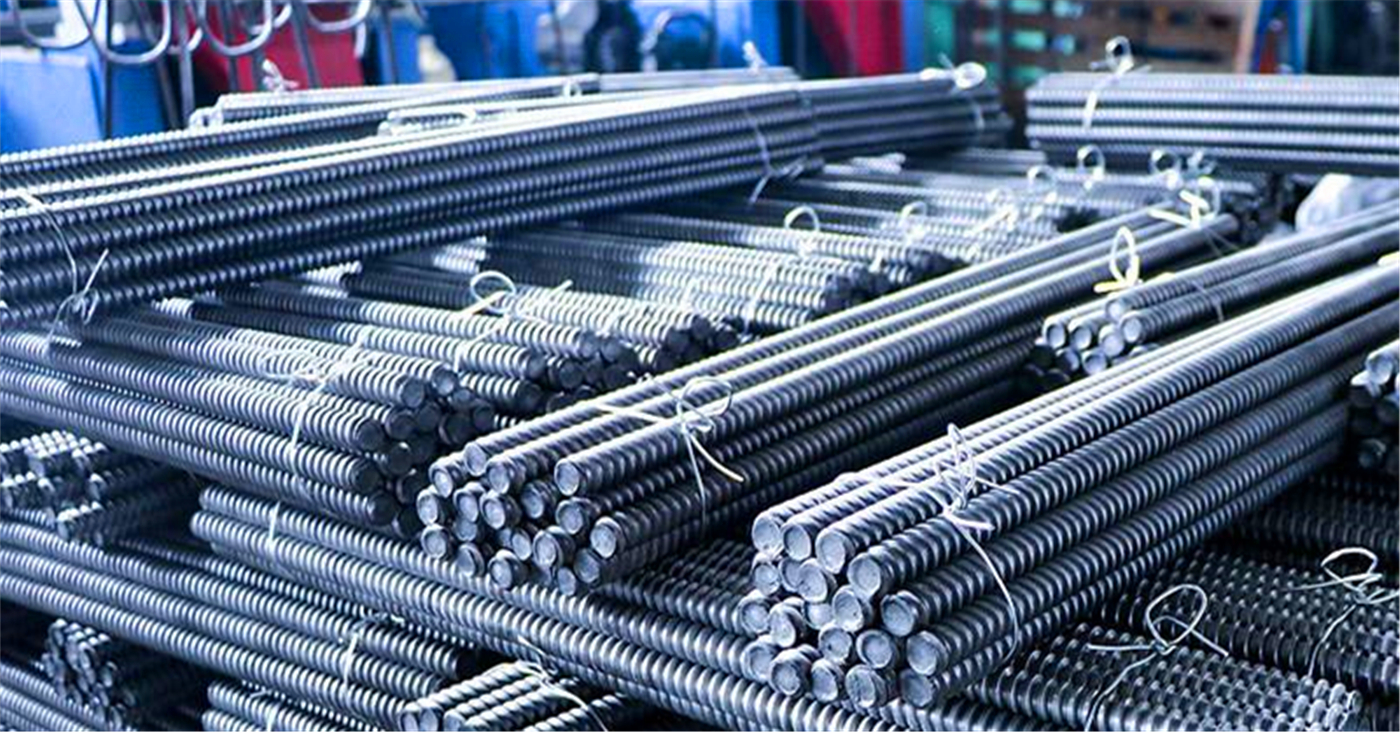

Zolo ZTie™ Threadbar with hot-rolled, continuous thread on both sides. Together with matching other ZTie™accessories, it is used by many kinds of formwork.
Inquire Now
Share:
Overview

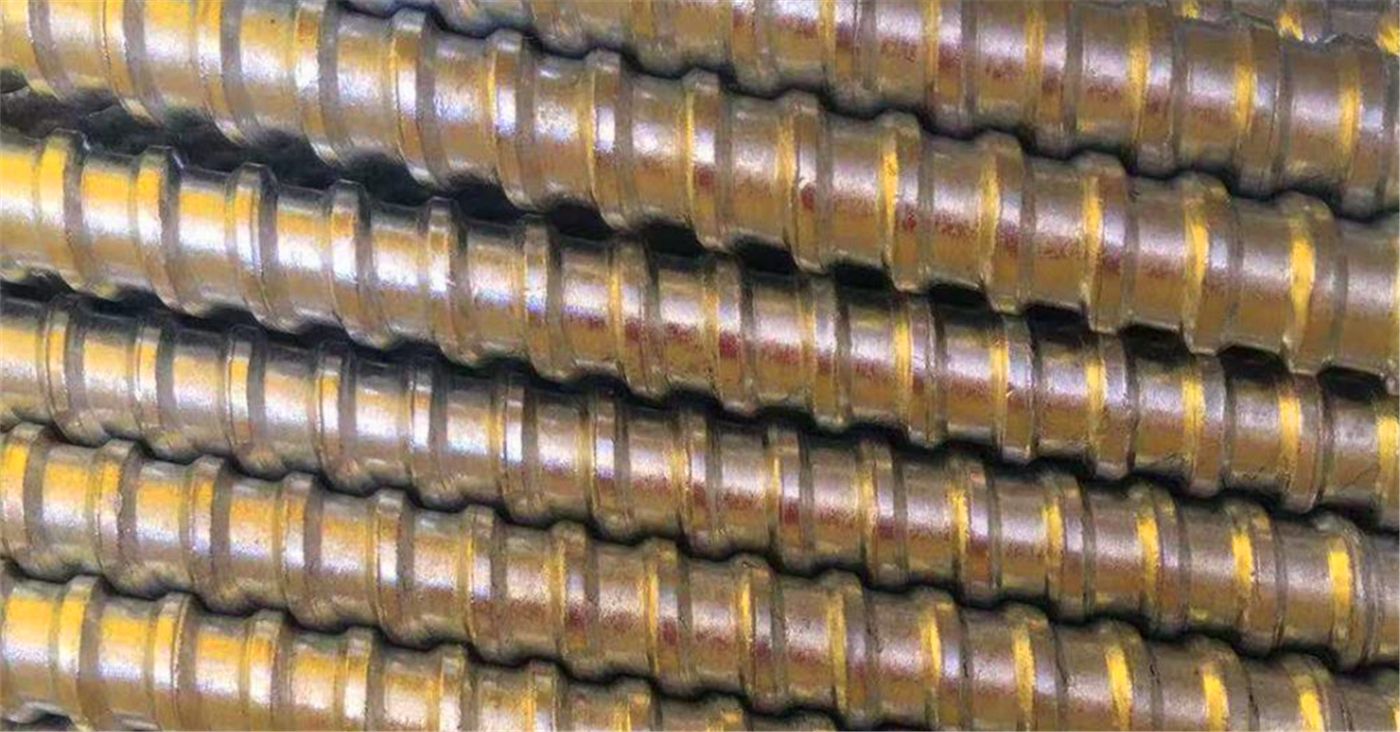

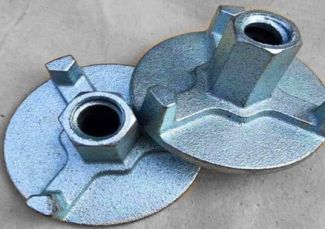

A decisive advantage of ZOLO ZTie™ Thread Bar is its coarse thread that does not run around the complete circumference of the bar. Consequently, the bar is not only insensitive against damages and dirt, but also self-cleaning. Furthermore, it can be cut at any point and used continuously with ZTie™ couplers or ZTie™ wing nuts.
,
The high thread pitch allows a quick assembly and disassembly of the connecting and anchoring parts. The high strength of ftk=1,100 N/mm2 permits a high load capacity in relation to its low weight per meter.
We offer a large range of accessories in diameters 14,16,18, 20 and 25mm for all kinds of formwork applications.
Features
| 1. | Insensitive against damages and dirt, self-cleaning |
| 2. | Can be cut at any point and used continuously with ZTie™ couplers or ZTie™ wing nuts |
| 3. | Quick assembly and disassembly of the connecting and anchoring parts |
| 4. | High strength with low weight per meter |
Specifications
| Diameter(mm) | Steel Grade | Max.Load(kN) | Working Load(kN) |
| 12/14 | GB-Q235/GB-Q355 | 60 | 30 |
| 15/17 | GB-Q235/GB-Q355 | 170 | 80 |
| 20/23 | GB-Q355 | 275 | 140 |
| 25/27 | GB-Q355 | 460 | 245 |
