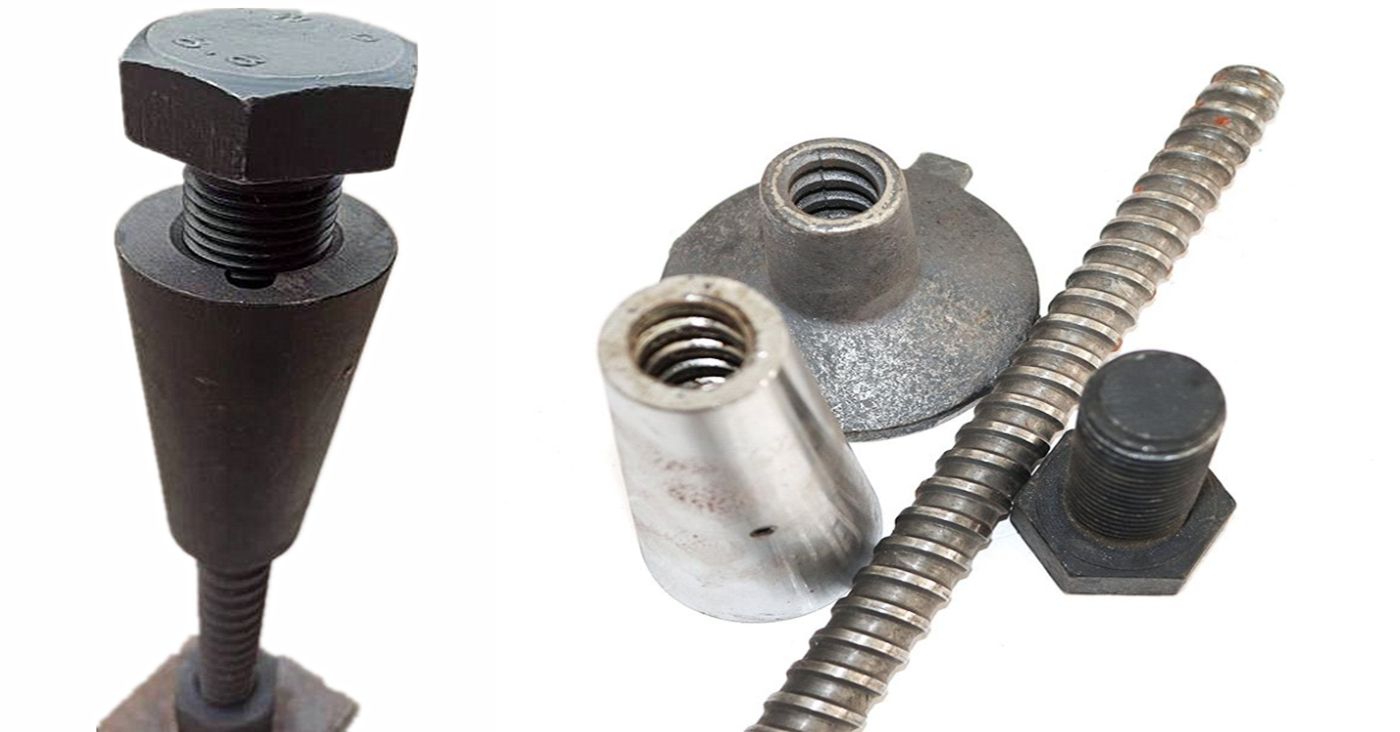

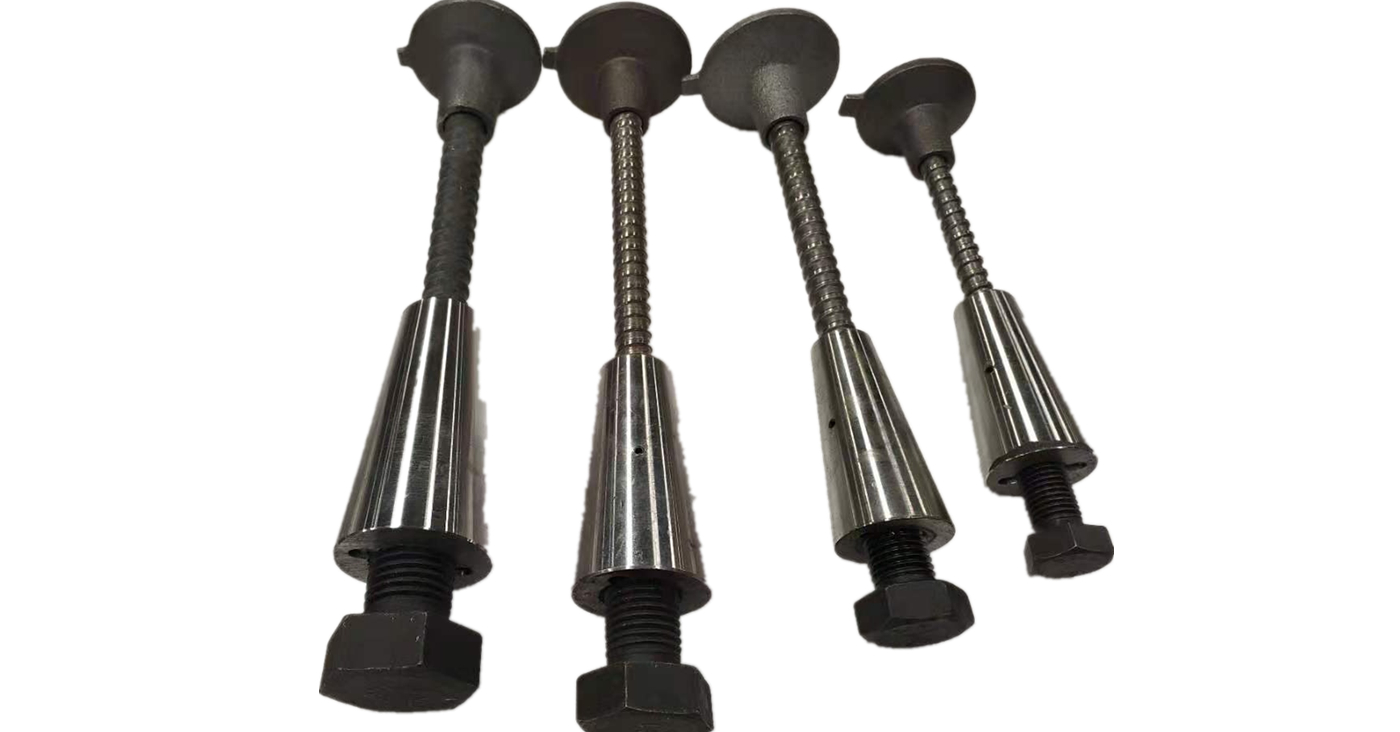

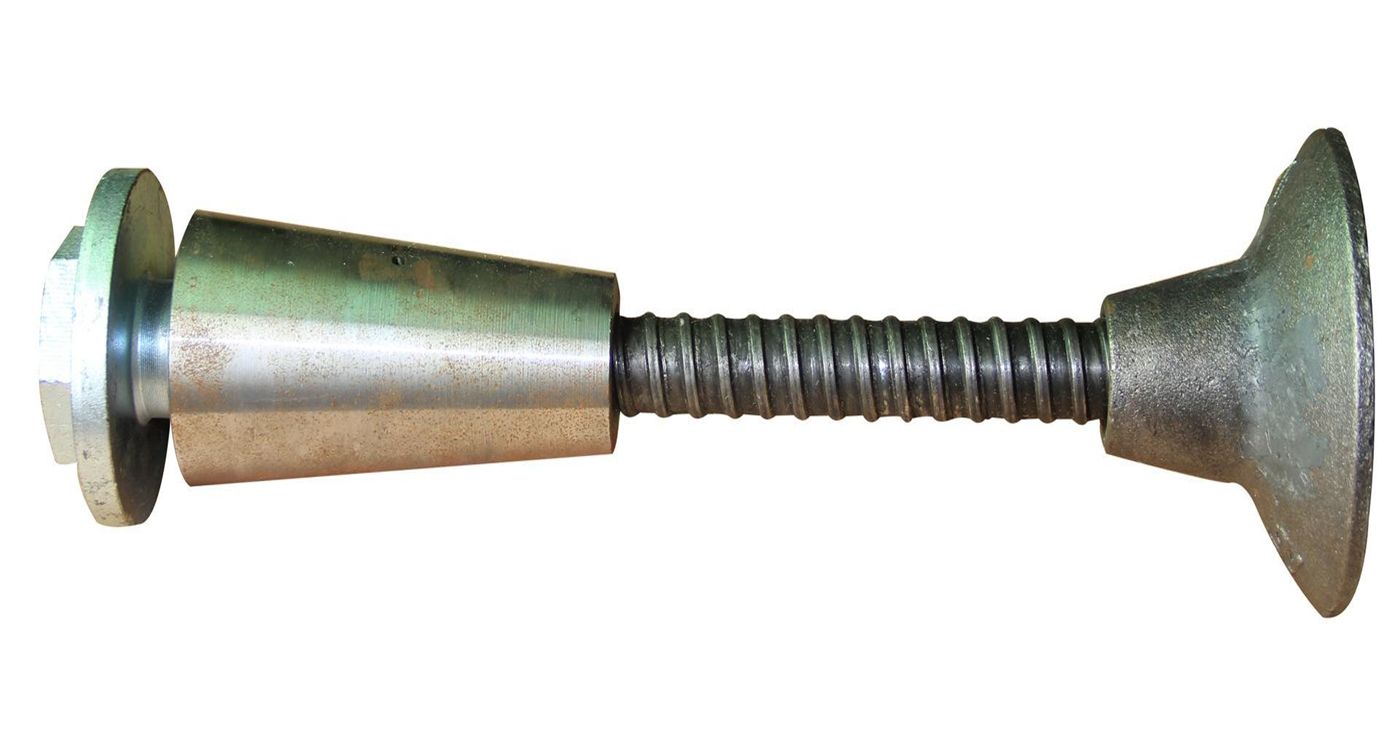

Zolo ZTie™ Anchorage assy is the most important supporting part for climbing formwork. The system is made of five parts. Thereinto, tensile bolt, V-climbing cone and washer can be taken out for reusing after the concrete pouring finished.There are two kinds of anchor systems,A & B. A is matched with single anchor shoe and B is matched with double anchor shoe.
Zolo ZTie™ Anchorage assy is the most important supporting part for climbing formwork. The system is made of five parts. Thereinto, tensile bolt, V-climbing cone and washer can be taken out for reusing after the concrete pouring finished.There are two kinds of anchor systems,A & B. A is matched with single anchor shoe and B is matched with double anchor shoe.

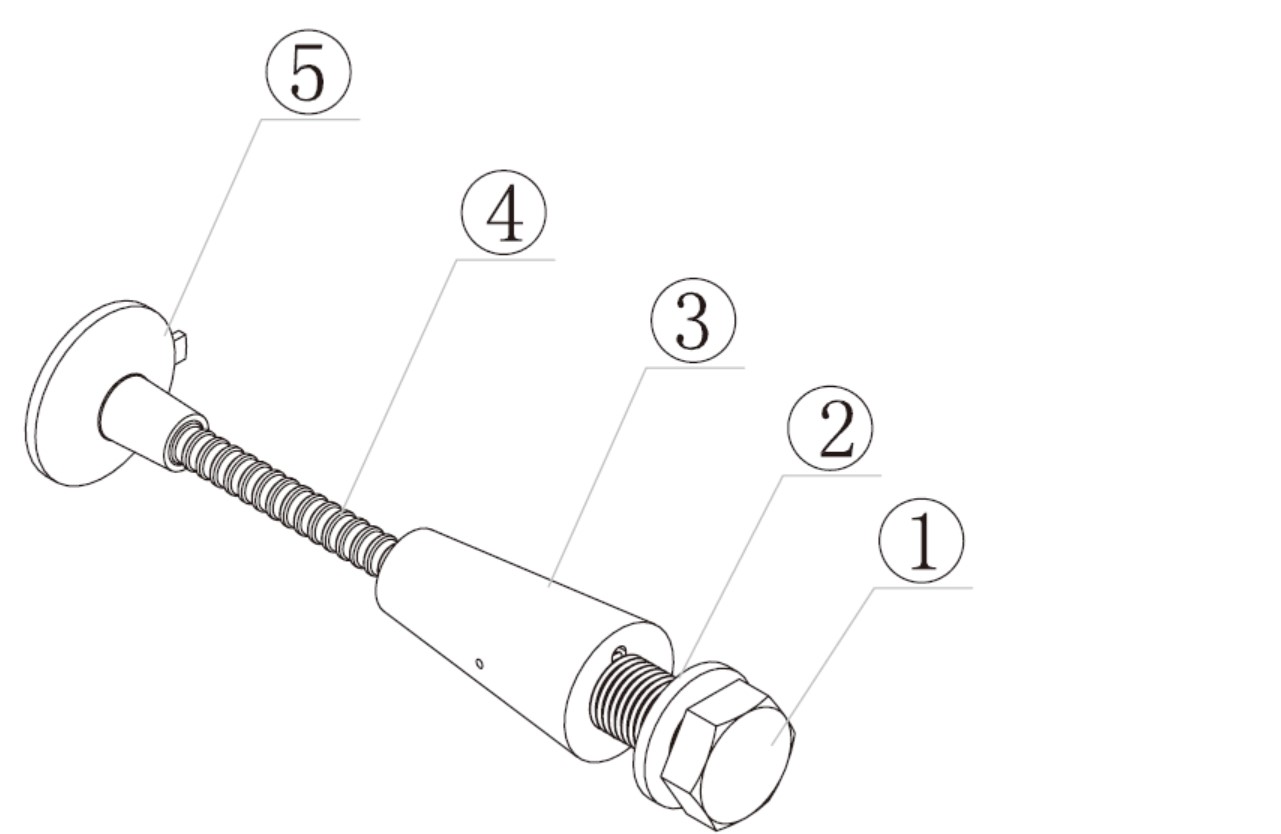

Anchor Assy A (Matched with single anchor shoe)
①Tensile Bolt M42
②Washer 78/52
③V-climbing Cone M42/D20
④High-strength Rod D20/L=300
⑤Anchor Plate D20
Anchor Assy B(Matched with double anchor shoe)
①Tensile Bolt M36
②Washer 65/46
③V-climbing Cone M36/D20
④High-strength Rod D20/L=300
⑤Anchor Plate D20
0.81
0.65
